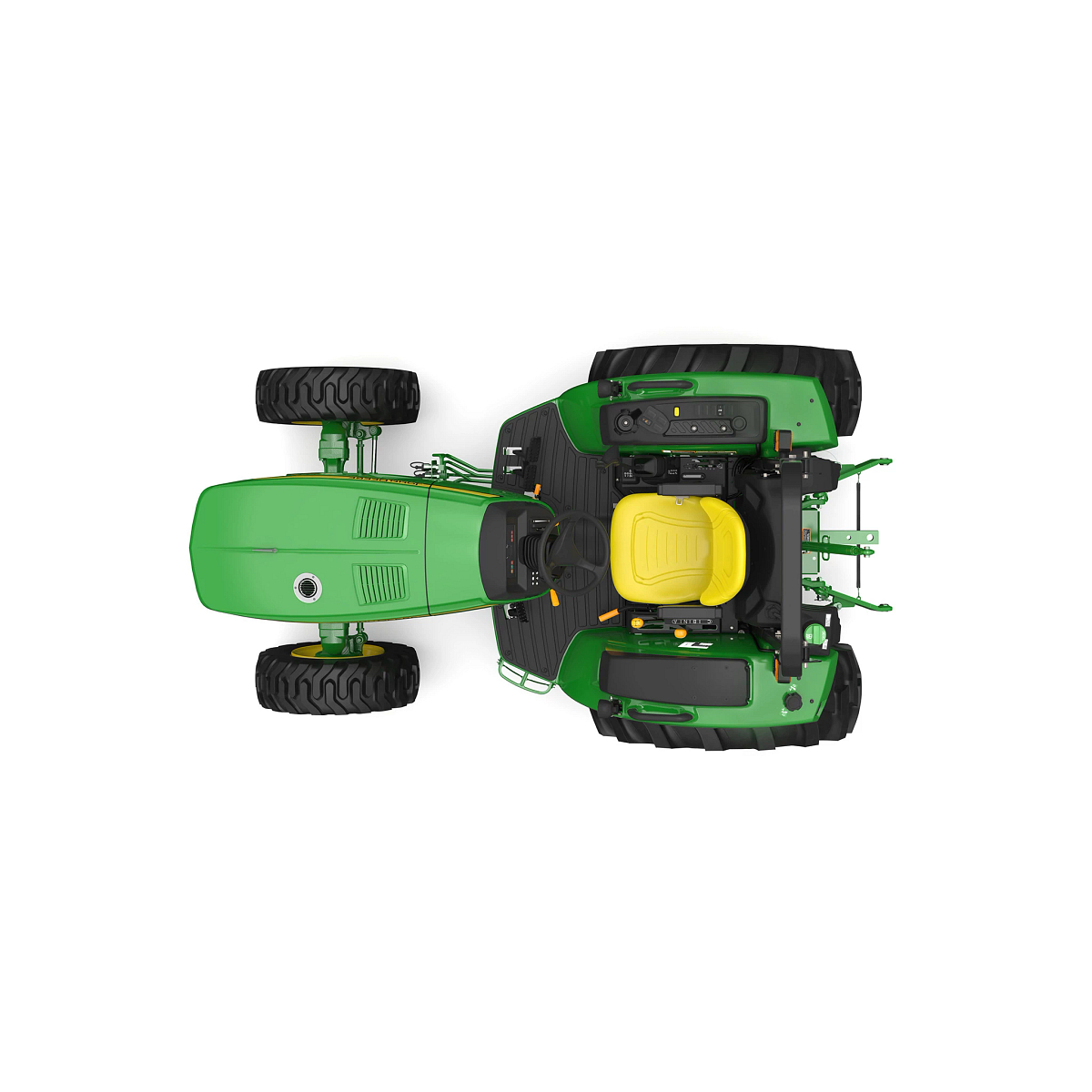

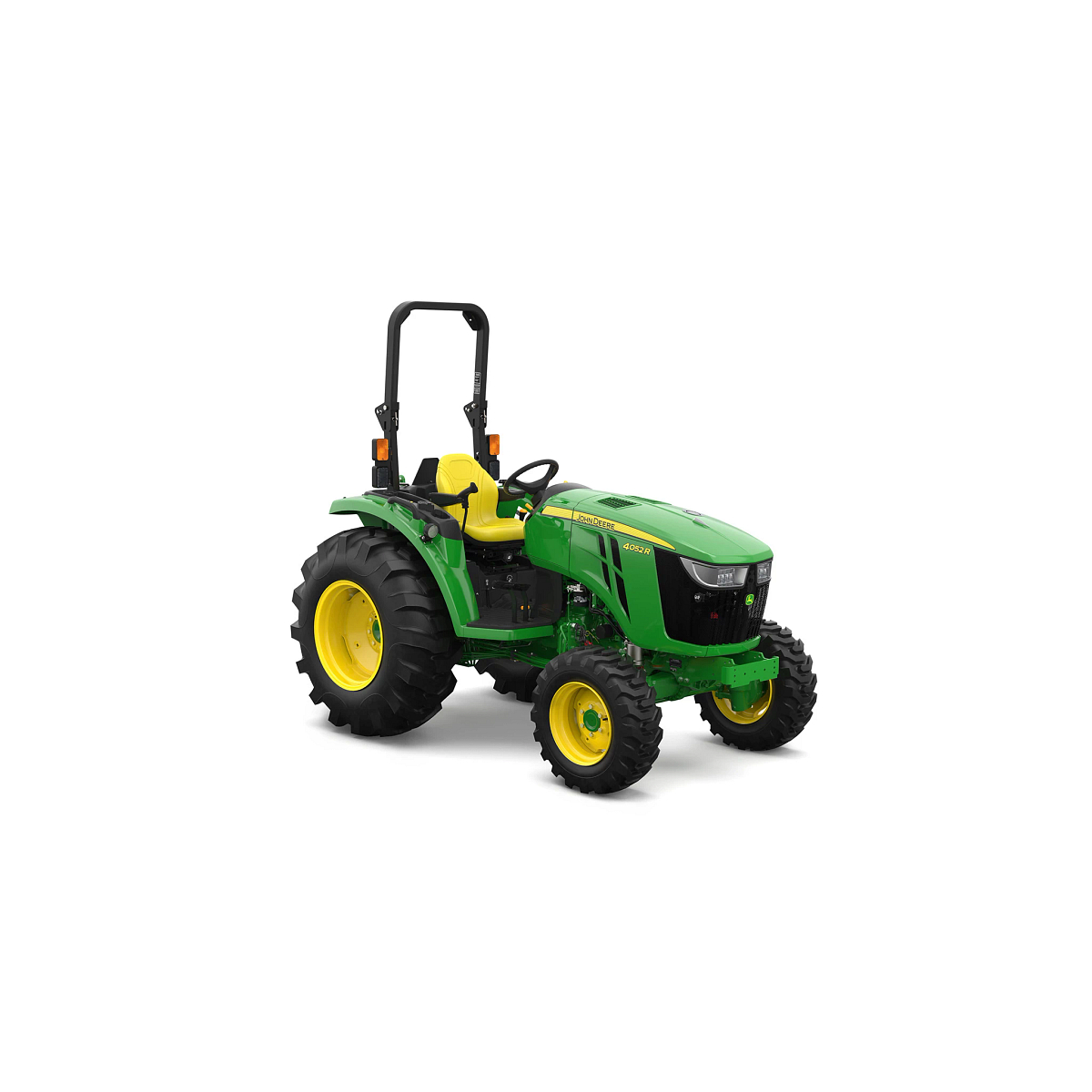

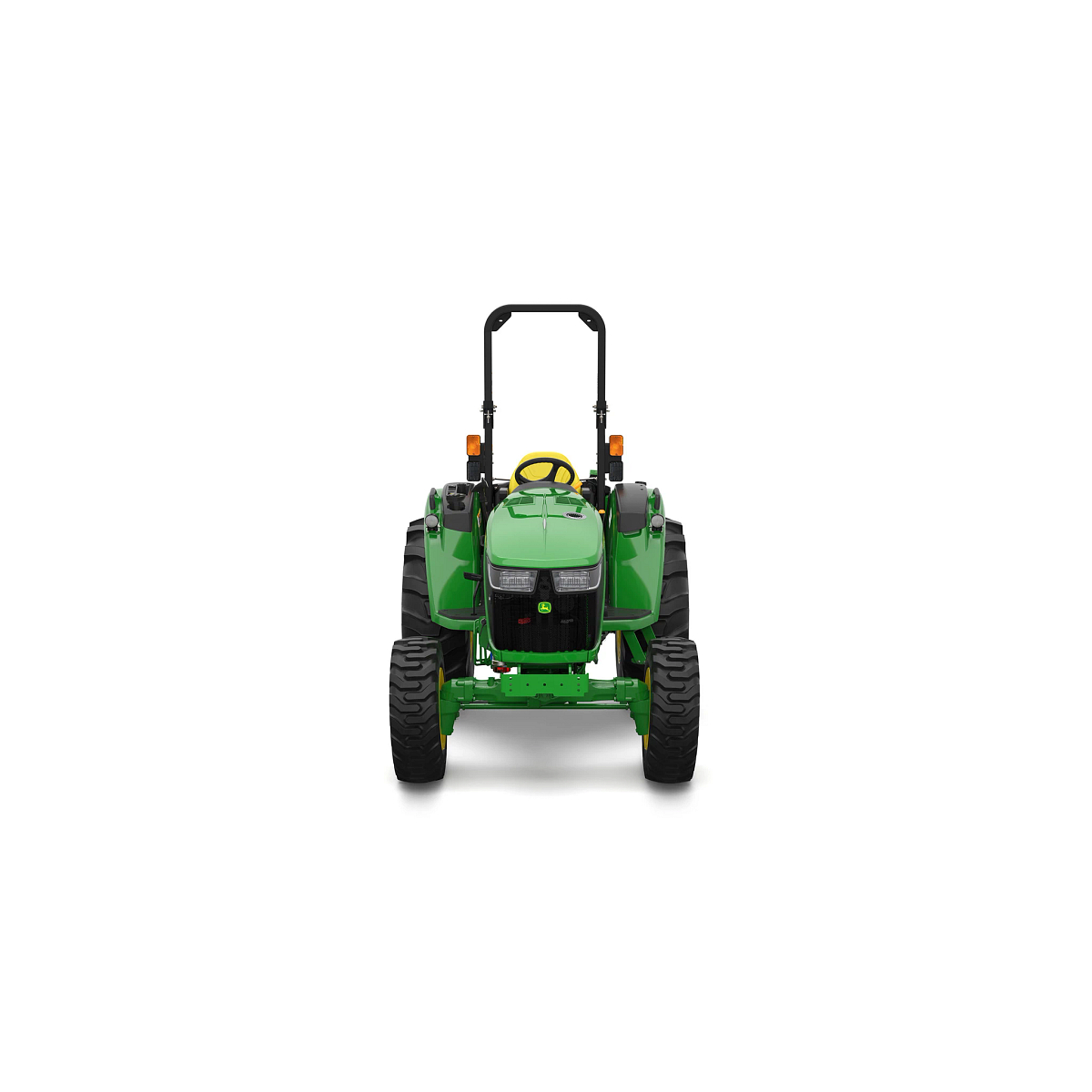

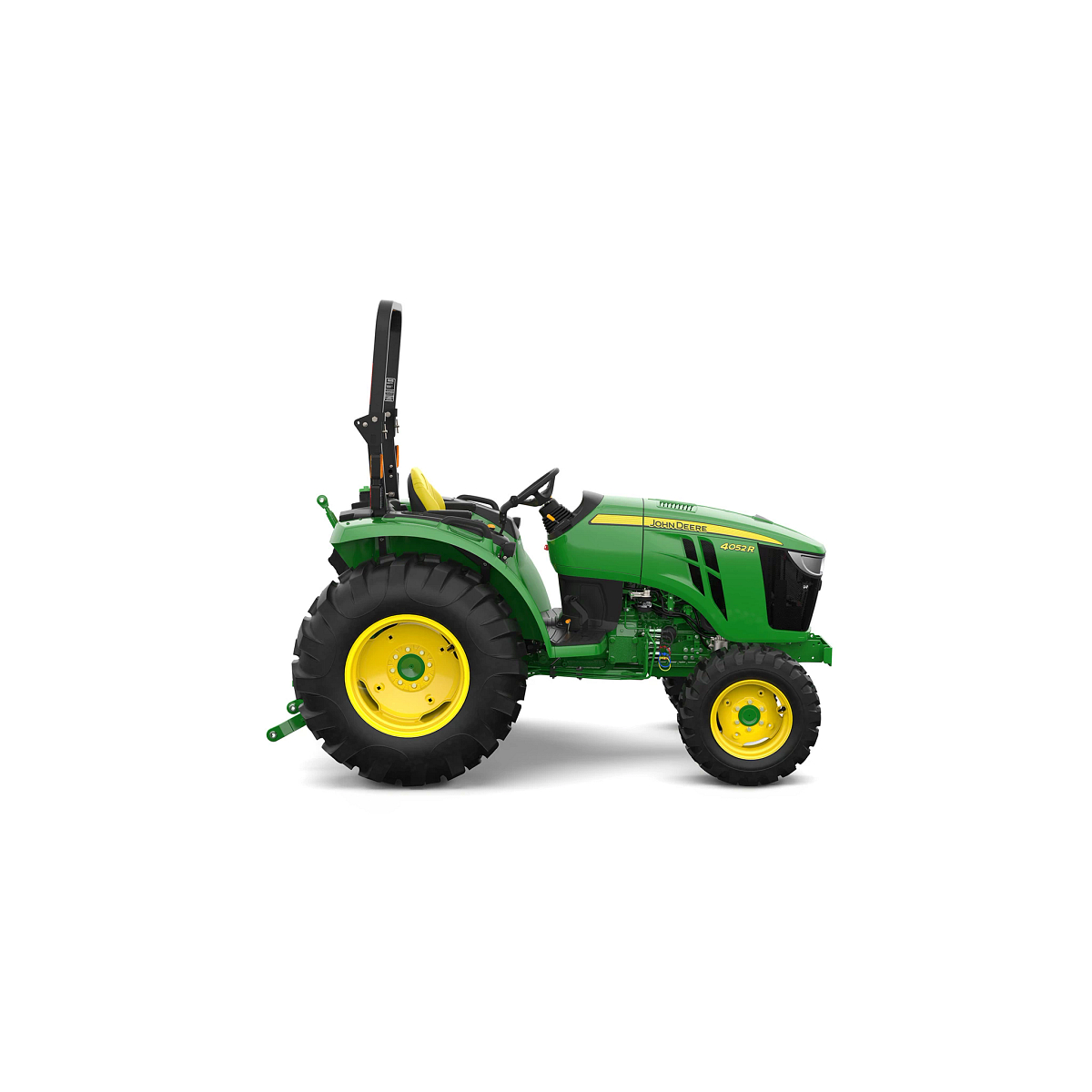

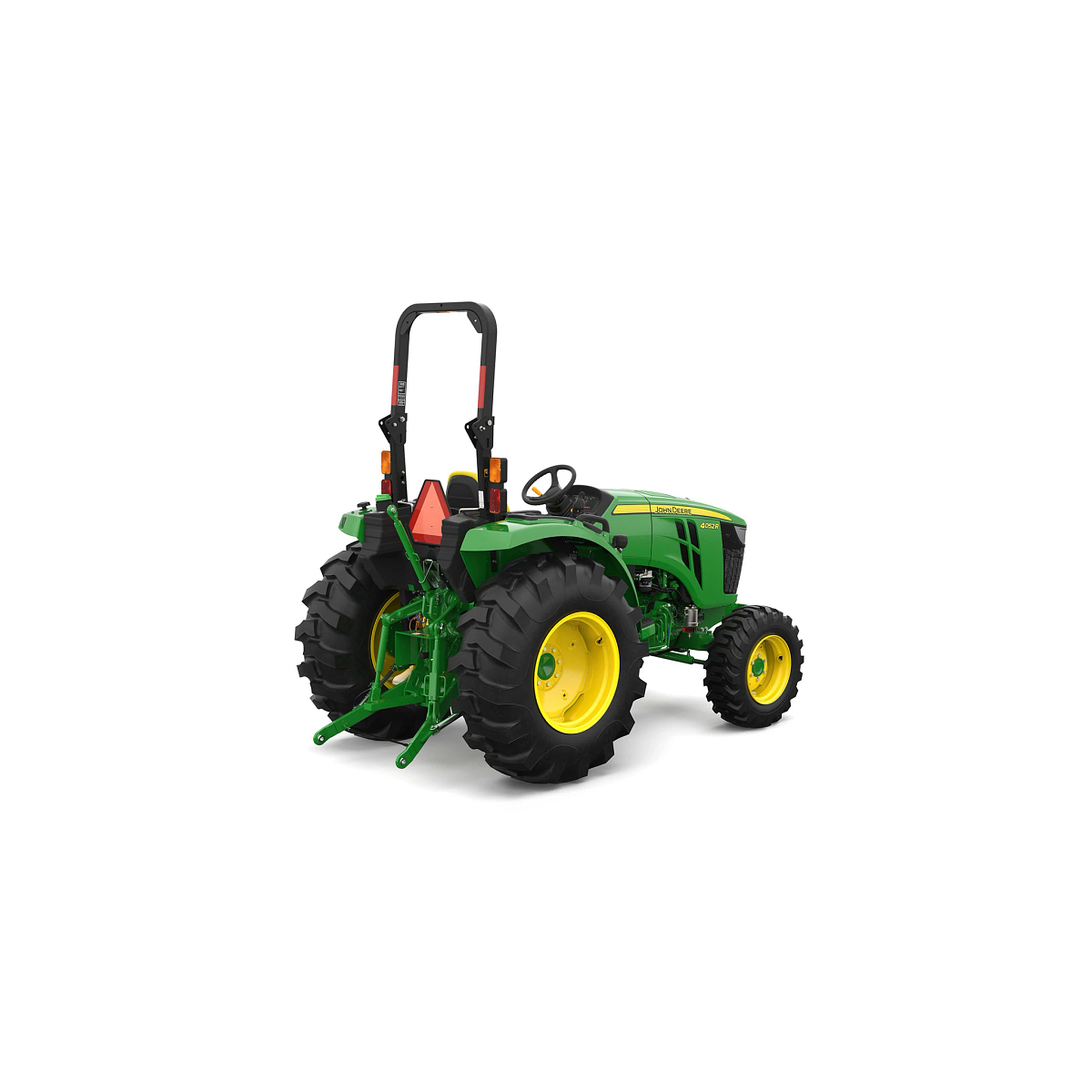

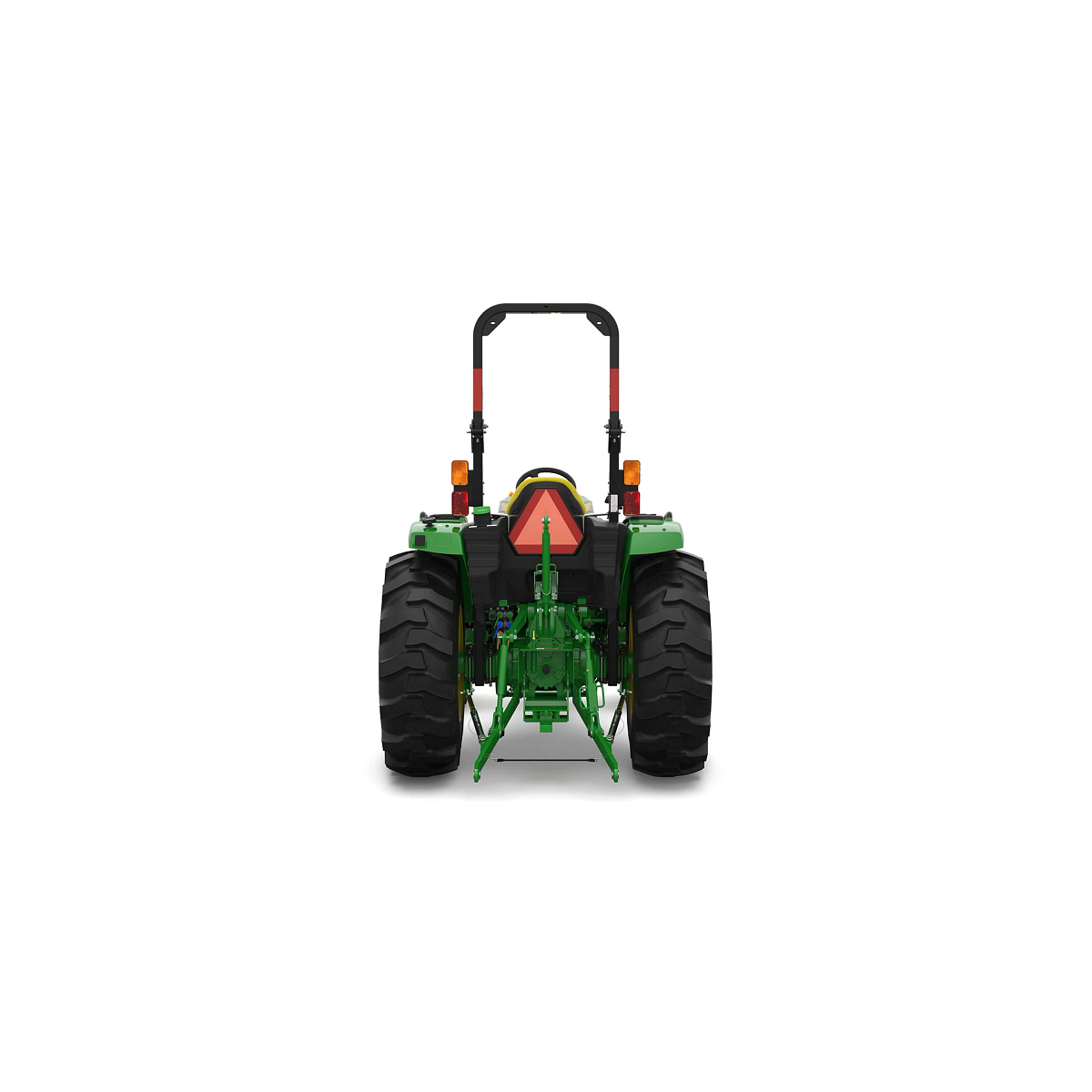

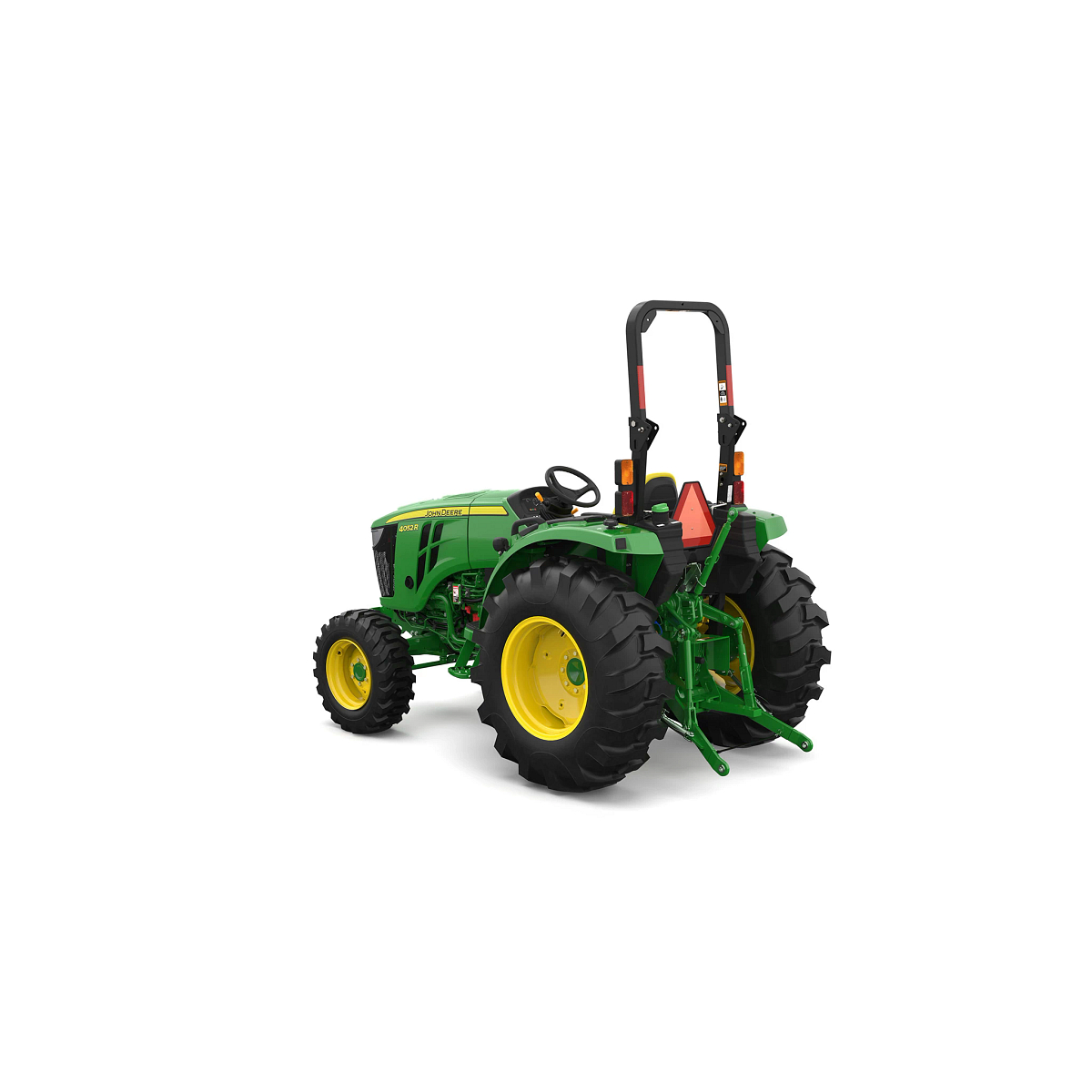

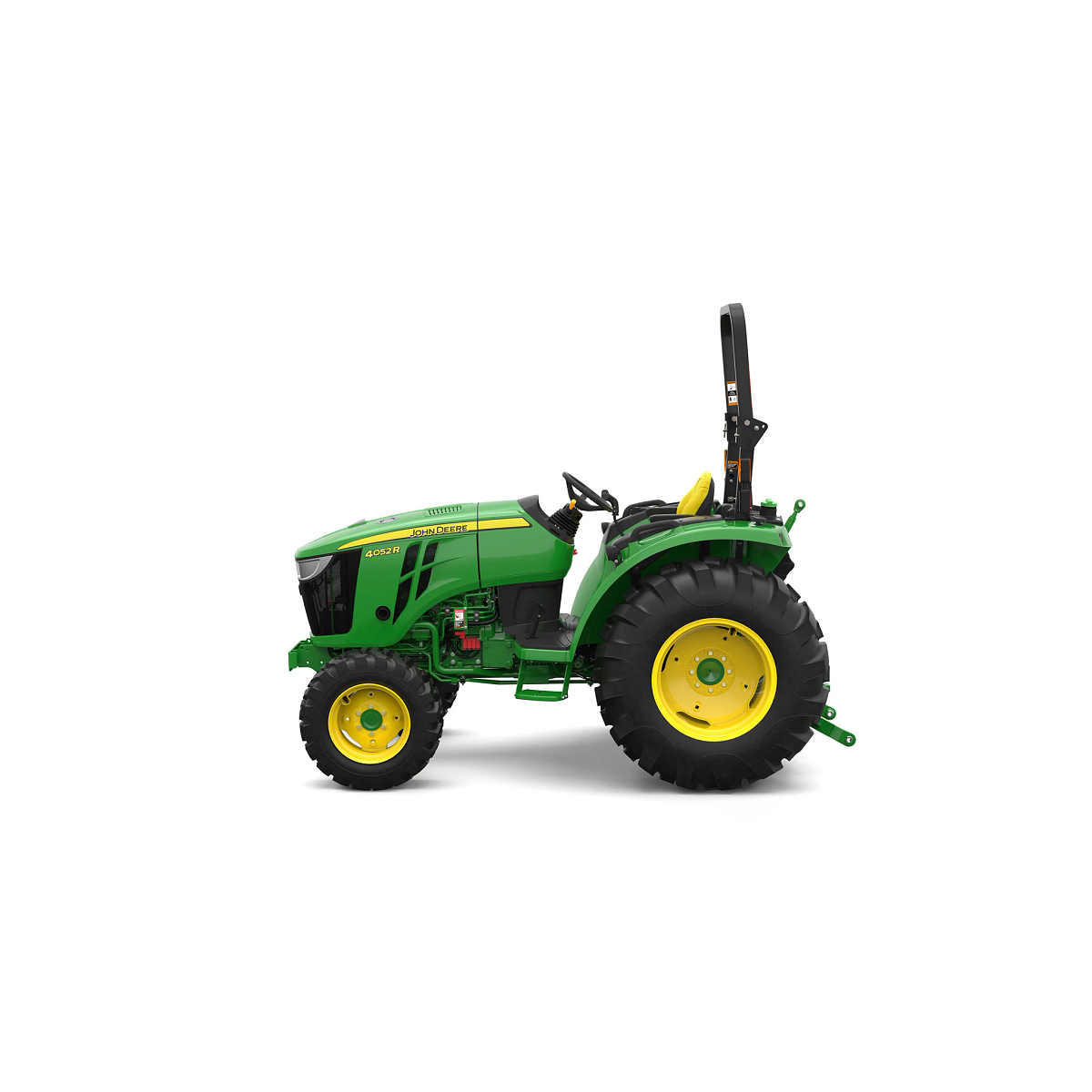

John Deere 4052R Compact Utility Tractor

Specifications

Compare >>> Select up to 2 models to compare specifications

John DeereJohn Deere 4052R Compact Utility Tractor

Add Model --Please Select-- 4044M HST/PRT (Model year 2024) 4044R HST/PRT (Model year 2024) 4052M HST/PRT (Model year 2024) 4066M (Model year 2024) Gear 4WD / HST 4WD 4066R (Model year 2024) Gear 4WD / HST 4WD L4760 GST, HST, HSTC L5060 GST Boomer 47 Gear 4WD / HST

Add Model --Please Select-- 4044M HST/PRT (Model year 2024) 4044R HST/PRT (Model year 2024) 4052M HST/PRT (Model year 2024) 4066M (Model year 2024) Gear 4WD / HST 4WD 4066R (Model year 2024) Gear 4WD / HST 4WD L4760 GST, HST, HSTC L5060 GST Boomer 47 Gear 4WD / HST

Engine power (gross)	SAE J1995 rated power: 37.9 kW 50.8 hp 51.5 PS at 2600 rpm
Power take-off (PTO) power	PowrReverser™ transmission: 30.5 kW 40.8 hp eHydro™ transmission: 29.2 kW 39.1 hp
Steering hydraulics	23.5 L/min 6.2 gpm
Implement hydraulics	42.3 L/min 11.2 gpm
Hitch type	Category 1
Lift capacity, 24-in. behind link arms	1135 kg 2500 lb
Standard transmission; forward/reverse	eHydro Transmission (eHST)
Cruise control	Standard
Approximate shipping weight (open-station; cab)	Open operator station (OOS) - 1710 kg 3770 lb Cab - 2120 kg 4675 lb
Wheelbase	185.5 cm 73 in.

Family	EYDXL2.09TDA FYDXL2.09TDA GYDXL2.09TDA
Manufacturer	Yanmar
Engine model	4TNV86CT-MJT
Engine power (gross)	SAE J1995 rated power: 37.9 kW 50.8 hp 51.5 PS at 2600 rpm
Power take-off (PTO) power	PowrReverser transmission: 30.5 kW 40.8 hp eHydro transmission: 29.2 kW 39.1 hp
Rated engine speed	2600 rpm
Type	Diesel
Injection pump type	High pressure common rail direct injection
Aspiration	Turbocharged
Emissions compliance	Final Tier 4
Cylinders/displacement	4 / 2.091 L 4 / 127.6 cu in.
Number of cylinders	Four
Cylinder liners	Cast-in-block
Bore and stroke	86 x 90 mm 3.4 x 3.54 in.
Compression ratio	19.1:1
Lubrication	Pressurized
Cooling system	Liquid
Air cleaner	Dual element with electronic restriction indicator
Engine torque at rated speed	139 Nm 102.5 lb-ft
Fuel tank capacity	Rollover protective structure (ROPS) - 56.9 L 15 U.S. gal. Cab - 52.2 L 13.8 U.S. gal.

Battery size	770 CCA
Alternator (12-V)	75 amp
Starter size	2 kW 2.68 hp

Type	High pressure common rail direct injection
Fuel consumption

Standard transmission; forward/reverse	eHydro transmission (eHST)
Optional transmission; forward/reverse	12/12 PowrReverser transmission (PRT)
Left-hand reverser	PRT only
Transmission gear ranges	PRT - 12F/12R eHydro - Infinitely-variable 3 range
Final drive	Planetary
Brakes	Multi-plate wet disc
Steering	Hydrostatic power steering
Clutch, wet/dry	Wet
Clutch disk diameter wet clutch	129 mm 5.08 in.
Axle capacity	Front 1600 kg 3528 lb Rear 2400 kg 5292 lb
Creeper	SpeedMatch standard
Cruise control	Standard
Differential lock	Yes
Drawbar maximum vertical load

Type	Open center
Pump rated output	Steering 23.5 L/min 6.2 gpm Implement 42.3 L/min 11.2 65.8 L/min 17.4 gpm
Pump type	Single gear
Maximum operating pressure
Draft control sensing	Position control
Remote control valves available	Up to six rear remotes

Type	Category 1
Lift capacity, 24-in. behind link arms	1135 kg 2500 lb

Standard	Independent 540 rpm at 2600 rpm
Optional	540E rpm
Control	Independent
Clutch	Wet disc
Brake (for mid and rear PTO)
Engagement method

Crankcase with filter	5.3 L 1.4 gal.
Transmission and hydraulic system	47.3 L 12.5 gal.

Type	Planetary
Differential lock	Yes

Rollover protective structure	Type Foldable Yes
Platform - flat/straddle	Flat
Gear shift location - console/floor	PRT - Left-hand side

Compliance	OSHA, SAE, ASAE
Visibility	360 degree (angle)
Air conditioning, temperature differential	14.4 °C 58 °F
Doors	Two
Noise rating	78 dBA
Seat equipment	Air suspension with swivel

Height
Wheelbase	185.5 cm 73 in.
Front axle clearance	35.1 cm 13.8 in.
Turning radius with brakes	2.8 m 9.19 ft
Turning radius without brakes	3.0 m 9.84 ft
Limited slip differential
Approximate shipping weight (open-station; cab)	Open operator station (OOS) - 1710 kg 3770 lb Cab - 2120 kg 4675 lb

Front	Farm - 8-16 Turf - 27x10.5-15 or 27x12LL-15 Industrial - 10-16.5
Rear	Farm - 13.6-28 Turf - 44x18-20 or 22.5LL-16.1 Industrial - 16.9Lx24
Front tread range	148.1 cm 58.3 in.
Rear tread spacing	137.2 cm 54 in.

Toolbox
Tilt steering wheel
12-V Outlet
