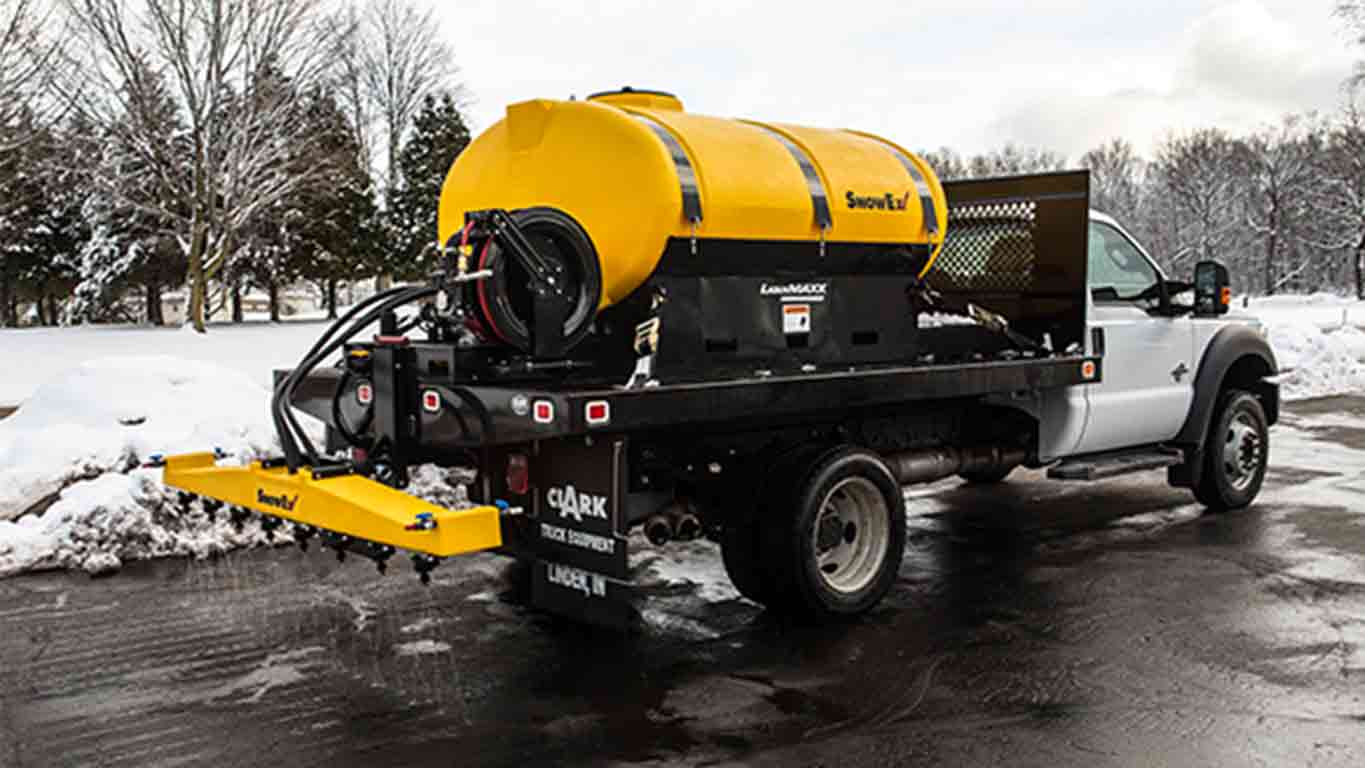

New 500 Gallon

Liqui Maxx™ Spray Systems
500 Gallon
REQUEST A QUOTE
  • Sprayer's components are designed specifically for harsh weather conditions and deliver consistent results with liquid applications.
  • Modular design allows you quickly to outfit your truck with the right boom, tank, and pump set up for different jobs.
  • Tank capacities range from 300 1,250 gallons and fit trucks from class 2B to 6 and are easily interchangeable.
  • A durable centrifugal, dry-seal pump has a low-water shutoff that prevents it from running dry. This ensures long-lasting seal performance. The cold-weather tested valve bank includes internal seals and covered valve indicators for further rugged reliability. Pumps for this sprayer are hydraulic or motor drive.
  • Automatically control flow rate and speed inputs from the cab of the truck. The left, center, and right spray zones can be independently adjusted to give you precise control when spraying.
  • An optional GPs speed sensor can be outfitted to automatically monitor and adjust the flow rate based on the vehicle's speed.
  • The rear nozzles can be adjusted to 1 of 3 patterns with the turn of a hand. No tools are required!
  • 96” boom delivers up to a 24’ application area.

Materials you can use in this spreader: salt brine, calcium brine, and other premium branded liquids.



More Info

Approximate Weight: 475lb

Overall Length (with pump): 112”

Overall Height: 54

Overall Width: 59

Capacity: 500 ga

Tank: LLPDE Safety Yellow Poly

Frame: Powder-coated steel with 2-way fork pockets


Boom Specs and Information

Overall Width: 8’ 2”

Spray Width (with boom only): 8'

Spray Width (with wing sprayer) 24'


Nozzles:

Center of the Boom: Has 3 Triple Stream Nozzles

Boom Ends: 2 Boomless Side Nozzles


Mounting: Standard Receiver Hitch

Spraying Capacity: 10 to 60 gal/acre depending on vehicle speed.

Materials you can use in this spreader: salt brine, calcium brine, and other premium branded liquids.
